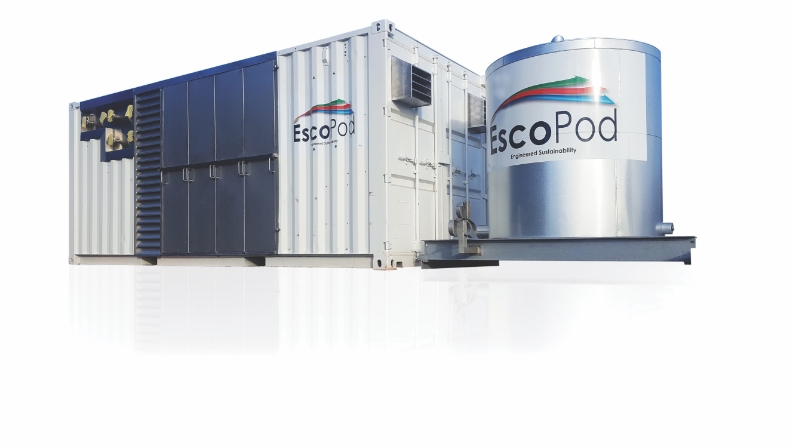

The EscoPod

An ultra-efficient, high temperature (up to 100°C), multi-function heat pump system tailored to specific applications. Leveraging over 30 years of industry experience, ActionZero engineers and scientists designed and developed this turnkey patented thermal system to deliver variable temperature heat in high volume applications. The EscoPod is a multi-function thermal heating solution explicitly configured to deliver breakthrough COP efficiencies for your production process.

Its modular build ensures flexibility including: heat recovery module; hot water module; space heating module; and chilling module. ActionZero delivers the EscoPod unit to site ready to install and commission without interruption to production or distribution processes.

How it works

The EscoPod
All-Electric Model

  • The All-Electric model is designed utilising in-house heat pump design expertise, that employs optimisation of certain characteristics of the thermodynamic cycle, to achieve higher efficiencies for specific applications.
  • Source heat is extracted from either ambient air and/or waste water heat sources and processed through the a first stage heat pump producing low to medium temperature HW.
  • In a single-stage heat pump the work of compression takes place over one step. For higher temperature outputs, a two-stage system may be required to optimise efficiency.
  • Different interstage systems, e.g., cascade, open flash, are employed to further enhance heat generation efficiency, depending on the application.

The EscoPod
Hybrid Model

AIR & WATER SOURCE HEAT PUMP SYSTEM:

  • Heats water from 10 to 60°C
  • Delivers variable output temperatures
  • Runs on electricity – no fossil fuels



CAPSTONE MICRO-TURBINE SYSTEM:

  • Consumes Nat. Gas, LPG, Biogas, Liquid Fuel incl. H₂
  • Heats water from 60 to 95°C
  • Generates electricity for heat pump with surplus to plant.
  • Waste heat from turbine used to increase efficiency of heat pump.
  • Prototype in development with sister company EI-H₂ to replace hydrocarbon fuel with green H₂.
  • Single stage heat pump delivers pre-heating function, powered by electricity produced by an on-board micro-gas turbine.
  • High temperature heating function delivered through heat recovery from turbine exhaust.

Key Features

PATENTED TECHNOLOGY

EscoPod is a patented heat pump system which captures source heat from air, water or chilling refrigerant and delivers to MT/HT HW, space heating, wash water loads, and achieves breakthrough efficiencies to meet both carbon reduction and cost saving goals.

SYSTEM INTEGRATION

ActionZero provides full turnkey system integration for the EscoPod into your existing systems, including feasibility, design, installation and commissioning, with minimal disruption to operations.

OPERATION MAINTENANCE

ActionZero provides ongoing operations and maintenance up to a 10-year term so you can be assured the system COP performance is maximised in the long term.

DATA ANALYTICS

ActionZero’s data analytics solution means you get full visibility in real time of system performance, with dashboards detailing carbon savings, energy savings and cost savings.

EscoPod solutions perform up to 30% better than competitors

through our systems approach, customised solution, long term operations & maintenance service, and ongoing performance optimisation and validation via data analytics. While other providers leave integration, operation and maintenance to the customer, ActionZero delivers a fully managed turnkey solution.

2nd Stage Heat Pump
Consumes Electricity to further elevate to high temperature water

Backup Boiler
This system is added as a contingency

Heat Pump
Uses the recovered waste heat to raise the temperature of processed water to a medium temperature. It then delivers source heat to the 2nd stage heat pump.

Motherboard Control Centre
This controls and optimises the entire system, gathering data & reporting performance

Heat Exchanger
This controls and optimises the entire system, gathering data & reporting performance

Heat Pump
Uses the recovered waste heat to raise the temperature of processed water to a medium temperature. It then delivers source heat to the 2nd stage heat pump.

Backup Boiler
This system is added as a contingency

2nd Stage Heat Pump
Consumes Electricity to further elevate to high temperature water

Heat Pump
Uses the recovered waste heat to raise the temperature of processed water to a medium temperature. It then delivers source heat to the 2nd stage heat pump.

Motherboard Control Centre
This controls and optimises the entire system, gathering data & reporting performance

Heat Exchanger
This controls and optimises the entire system, gathering data & reporting performance

The EscoPod delivers

Where we deliver

Each EscoPod system is tailored and designed for its specific application. Our technical design team adjust the characteristics and requirements to meet the production site requirements. Each industry sector has different requirements and production outputs. ActionZero specialists tailor the functional design to meet the needs for:

EscoPod AZI

Large Industrial (Meat, Food, Biopharma and Manufacturing)

EscoPod AZH

Healthcare (Hospitals, Nursing Care Homes, Primary Care Centres), Hospitality (Hotels & Leisure facilities)

EscoPod AZE

Commercial buildings (Government & public sector, Financial services, Large & medium office buildings)
